Low Lift Pallet Truck EXH 14–20
Unique to operate
- Load capacity 2000 kg
- Rated lift 125 mm
- Speed 6 km/h
Horizontal transportation anytime, anywhere – a piece of cake with the EXH 14–20 low lift pallet truck, the nimble warehouse helper that makes everything a lot easier. Starting with the unique tiller ergonomics: a lot of thought has gone into the positioning of the control elements. They enable intuitive one-handed operation for all operators, no matter the size of the hand and whether it is the right or left. Meanwhile the LED or touch display on the tiller head allows the operator to keep an eye on all relevant truck information. Want to be able to manoeuvre the truck easily and safely at all times? No problem with OptiSpeed. The smart feature automatically adjusts the vehicle speed to the tiller angle. This means that you are just as safe handling loads at full speed during horizontal transportation as you are when carefully driving and braking in narrow aisles or on packed sales floors. The truck also really comes into its own here thanks to its compact dimensions. Whether working in narrow aisles or manoeuvring in HGVs, it takes it all in its stride. With features like these, the EXH 14–20 is perfect not just for horizontal transport applications in supermarkets, production and logistics, but also for use in HGVs. In short: wherever the low lift pallet truck is used, it makes life easier.
Request to: EXH 14–20
Please fill out the form below. We will get back to you as soon as possible.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Safe driving up and down ramps
with optimal traction thanks to spring-loaded support rollers
Precisely manoeuvrable, even in the smallest of spaces:
compact dimensions thanks to integrated lithium-ion battery in the EXH 14–20
Best views for precise operation:
clear view of the tips of the forks and centrally mounted tiller
One-handed operation
means both left and right-handed users can intuitively operate all of the driving, lifting and lowering functions
EXH 14–20 trucks are easy to position
for lateral pallet lifting thanks to smart fork marking
Simply powerful
Always ready to get the job done:
powerful, reliable and lowmaintenance electrical drive and steering motor
Virtually no interruptions:
battery capacity of up to 250 Ah with lateral battery change or interim charging of lithium-ion battery
The right driving programme for every situation:
maximum turnaround or maximum efficiency – ECO, BOOST and Blue-Q
Simply safe
Makes work easier:
easy-to-use, ergonomic tiller
Effective protection for feet:
low-lying truck frame
Safe yet speedy at all times:
OptiSpeed automatically adapts the speed to the tilt angle of the tiller
Stays on track around every bend:
Curve Speed Control automatically adapts speed to the steering angle when cornering
Safe manoeuvrability
in confined spaces thanks to the vertical tiller position
Maximum safety
in tight spaces with the optional active foot protection guard on the EXH 14–20
Simply flexible
Flexible and decentralised charging
with optional built-in charger
Battery changes made easy:
lateral battery change option for excellent availability with maximum safety
Optimal availability, tailored to your specific requirements: selection of different battery technologies and capacities
If additional equipment is required or desired to make work easier (e.g. scanners),
it can be simply and securely attached to the optional accessories bracket for easy accessibility
Simply connected
All relevant information is available at a glance
thanks to the intelligently positioned display
All important vehicle information is in the operator's field of view
thanks to the integrated display in the tiller head on the EXH 14–20 pallet truck
Individual access authorisations
thanks to various access control options
All fleet data can be viewed and analysed in real time
with the optional FleetManager 4.x

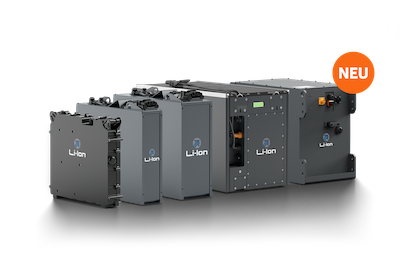

STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion Technology
Request to: EXH 14–20
Please fill out the form below. We will get back to you as soon as possible.
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| EXH 14/Li-Ion | 1.400 | 125 | 6.0 | 24 |
| EXH 16/Li-Ion | 1.600 | 125 | 6.0 | 24 |
| EXH 18/Li-Ion | 1.800 | 125 | 6.0 | 24 |
| EXH 20/Li-Ion | 2.000 | 125 | 6.0 | 24 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
